Screw-Cylinder By Camlog®
Technical Features
Identify a dental implant
Learn moreConnection
Internal
Three spline
Screwdriver
Platforms
- 3.8mm
- 4.3mm
- 5mm
- 6mm
Dimensions
| Length \ Diameter | 3.80mm | 4.30mm | 5.00mm | 6.00mm |
|---|---|---|---|---|
| 9.00mm | J1022.3809(P:3.80mm) | J1022.4309(P:4.30mm) | J1022.5009(P:5.00mm) | J1022.6009(P:6.00mm) |
| 11.00mm | J1022.3811(P:3.80mm) | J1022.4311(P:4.30mm) | J1022.5011(P:5.00mm) | J1022.5011(P:6.00mm) |
| 13.00mm | J1022.3813(P:3.80mm) | J1022.4313(P:4.30mm) | J1022.5013(P:5.00mm) | J1022.5013(P:6.00mm) |
| 16.00mm | J1022.3816(P:3.80mm) | J1022.4316(P:4.30mm) | J1022.5016(P:5.00mm) | J1022.5016(P:6.00mm) |
Compatible Components
Components compatible with Camlog® Screw-Cylinder®
Description

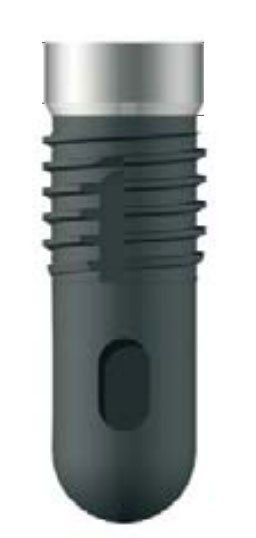

Screw-Cylinder is a standard dental implant produced by Camlog. It's a bone level implant. Its connection is internal with none. Its head is wide. Its body is straight with v shaped threads. Its apex has a dome shape, doesn't have a hole, and has grooves. It is made of cp titanium. It is available in 4 different diameters and 4 different lengths.It is available in 4 different platforms. This implant model is quite old. It requires a screwdriver of hexagon shape. For more details, please refer to the catalog. Camlog also offers 11 other implant models.
Components compatible with Camlog® Screw-Cylinder®:
Impression copings, Implant analogs, Abutments, Straight multi unit abutments, Scan bodies, Titanium bases, Locator, Locator R-TX, Ball attachment, Screws, Screwdrivers.
Available for different platforms.
